How to set up Outline VPN on ABLENET VPS

From current L0–L7 plans and OS selection to SSH protection, the official installer, generated ports, access keys, connection checks and rebuilding after an incident. The screenshots illustrate the process; operational checks matter beyond getting connected.

Published: June 26, 2025 Updated: November 11, 2026 Written and tested by Hikaru Ono

The screenshots are historical records from 2025. ABLENET introduced L0–L7 Linux VPS plans in July 2026; use the current official plan and pricing pages for decisions.

Guide to setting up Outline using ABLENET VPS

This guide explains how to set up Outline Server on ABLENET VPS and connect computers or phones. Besides configuration, plan for regaining SSH access, revoking unused keys and rebuilding from an empty VPS if management credentials are exposed.

This article has no affiliate links. The 21 screenshots document actions in March and June 2025; do not treat old V-series prices, plan names or button locations as current. Check applicable law, service terms and your organization's security policies first.

30-second verdict

Choose for update and recovery headroom, not just the lowest price

For a small Outline trial, ABLENET L1 (2 GB, two cores) is a practical starting point. L0 has 0.5 GB and does not meet the memory requirements of current major OS templates. Use the official Outline installer and allow only the generated management and access-key ports.

Choose the right technologyThis guide covers Outline, not OpenVPN.
Start testing with L1Leave enough memory for the OS, Docker and updates instead of choosing L0 on price alone.
Plan revocation and rebuildingDecide in advance how to revoke keys and rebuild if management credentials leak.
Start here

This is an Outline setup guide, not an OpenVPN guide

Although the existing URL contains 'openvpn', the configuration here uses Outline Manager for servers and access keys, and Outline Client for user connections. It does not cover OpenVPN configuration files, client certificates or OpenVPN Access Server.

ComparisonOutlineTypical OpenVPN configurations
AdministrationServer and access keys managed with Outline ManagerDepends on configuration: files, certificates and management servers
User distributionAn access key per user or deviceConfiguration files, certificates or identities
Suitable useA self-managed connection path for a small groupDesigned to requirements such as office LAN or site-to-site connectivity
This guideIn scopeRequires a separate design or guide
When Outline alone may not fit: access to an internal LAN, site-to-site VPN, device certificates, SSO, detailed audit or continuous support. Define users, destinations, authentication, logs and recovery time before choosing a technology.
Plan selection

Choosing an ABLENET L-series plan for Outline

ABLENET introduced its L0–L7 Linux VPS plans in July 2026. The table shows selected tax-inclusive monthly equivalents for annual prepayment. Introductory prices apply to the first payment; renewal prices differ. Check current contract terms before ordering.

PlanCPU and memorySSDInitial termRenewalOutline guidance
L01 core, 0.5 GB30 GBFrom ¥554/monthSetup fee ¥1,130From ¥554/monthGenerally not recommendedDoes not meet memory requirements for current major OS templates.
L12 cores, 2 GB40 GBFrom ¥968/monthFrom ¥1,130/monthStarting point for a trialA practical starting configuration for a small group on an empty VPS.
L23 cores, 4 GB80 GBFrom ¥1,536/monthFrom ¥1,706/monthMore headroomAllows more room for users, updates and monitoring.
L34 cores, 8 GB160 GBFrom ¥2,280/monthFrom ¥2,400/monthPlan carefully if sharing resourcesMay be more than a dedicated Outline instance needs. Avoid placing it alongside existing services.
L0 limitation

With 0.5 GB, the issue is not just whether it starts but whether it can be updated

The OS, Docker, Outline container, logs and package updates share memory. Current ABLENET Ubuntu templates generally require at least 1 GB, and Ubuntu 26.04 requires 1.5 GB, so L0 is not a standard recommendation.

Practical starting point

Try L1 and scale according to measurements and operating needs

L1 has 2 GB, leaving some room for the OS and Docker. Measure active users, concurrent connections, traffic and free memory during updates; move to L2 or higher if needed.

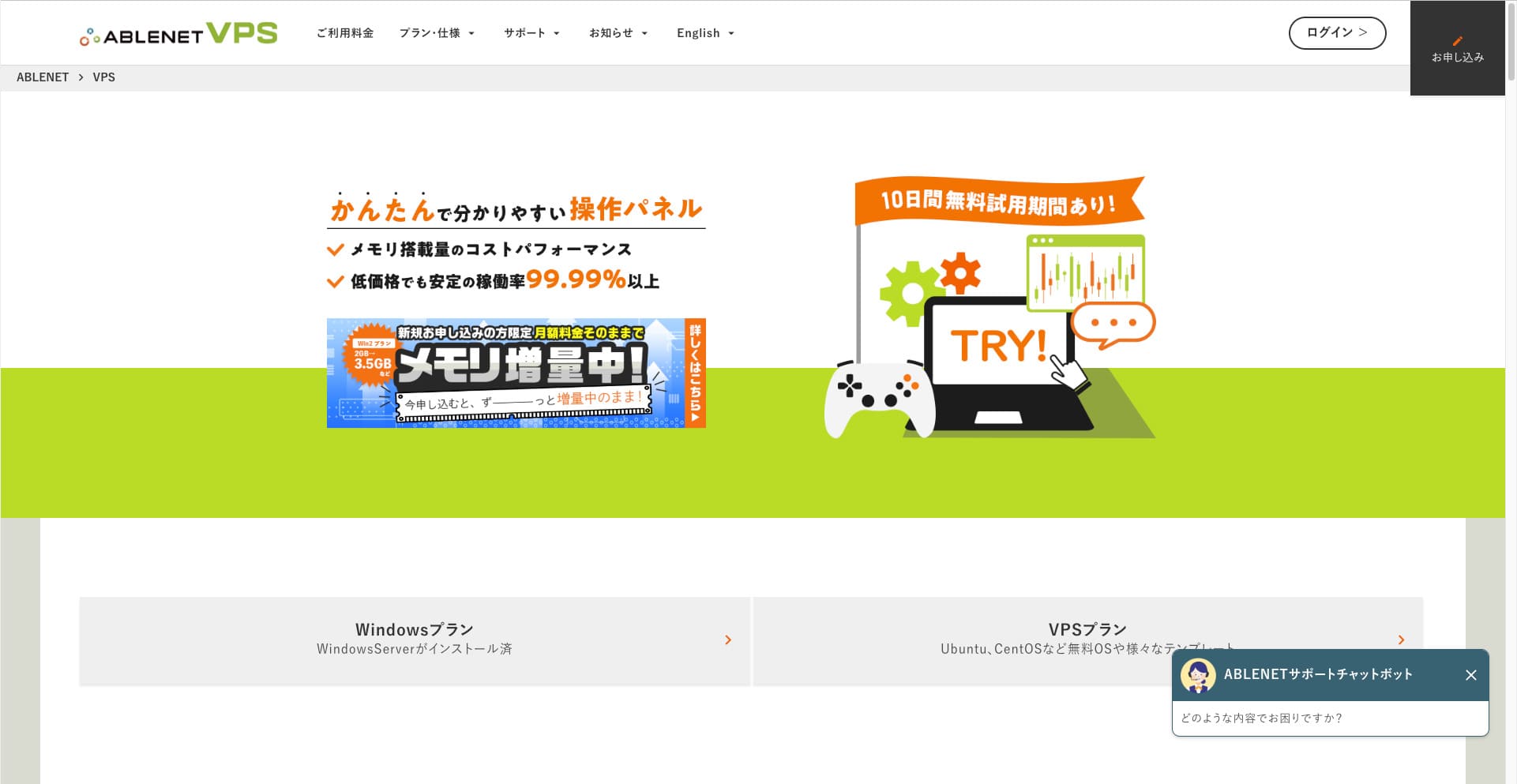

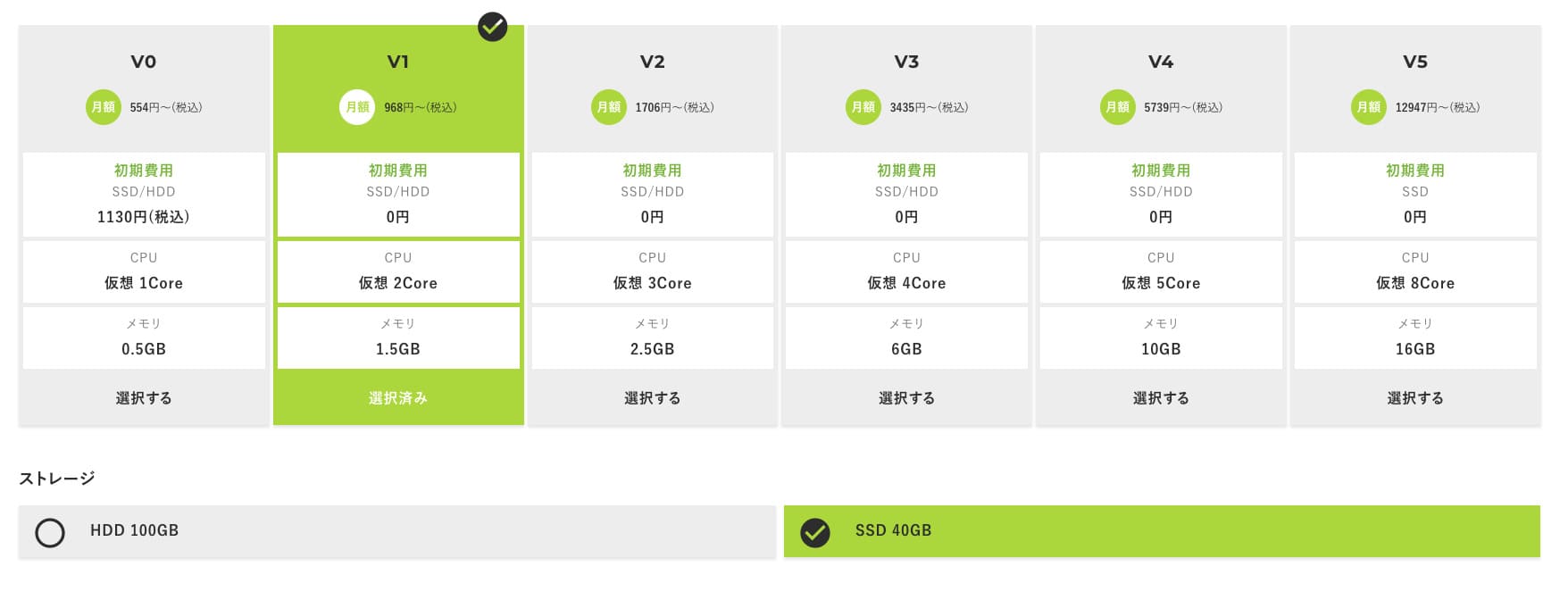

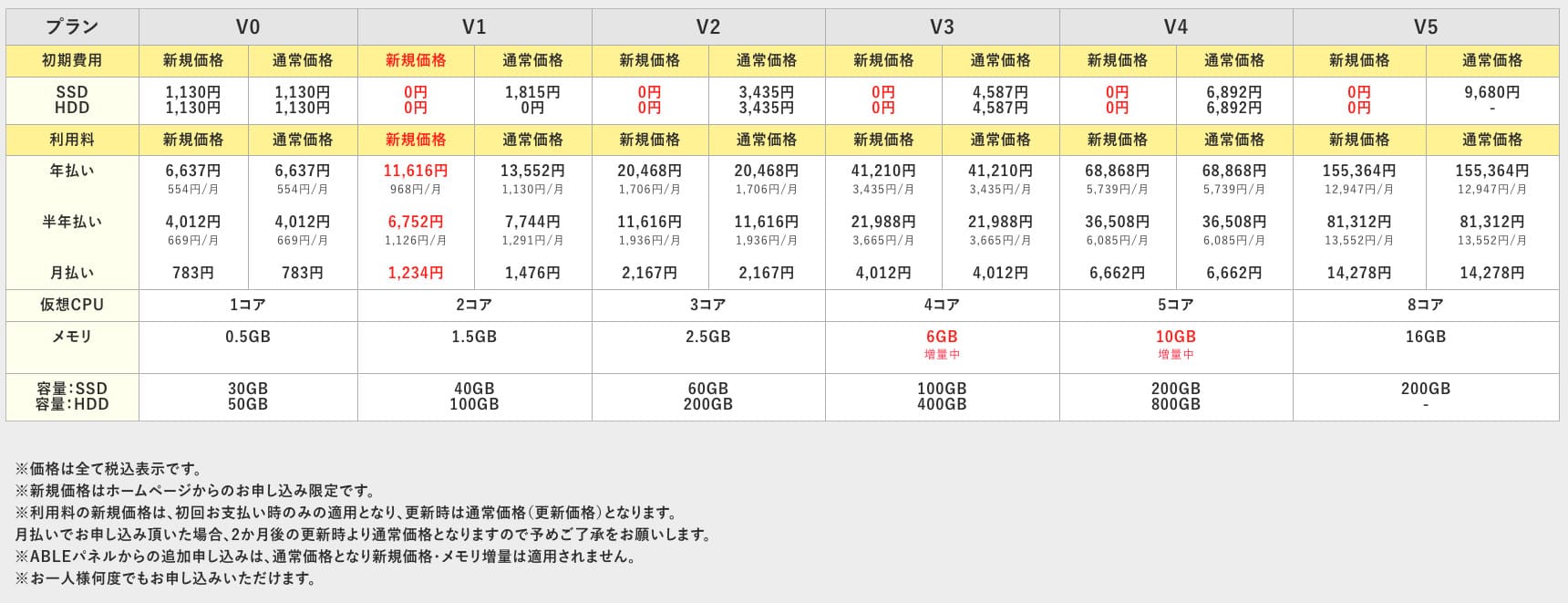

Historical screen from 2025
These are old V-series specifications, not a basis for selecting a current L0–L7 plan.
Historical screen from 2025
This is the old V1 signup screen. Check the official L-series CPU, memory and renewal prices.

The old V-series images illustrate the workflow only. Use ABLENET's current L0–L7 specifications, initial and renewal prices, and setup fees for the purchase decision.

Compatibility

Do not assume either the newest or an old OS is automatically safe

ABLENET offers initialization templates including Ubuntu Server 22.04, 24.04 and 26.04. Outline's installation documentation names Ubuntu 20.04 LTS or Debian 10 as prerequisites. The installer also checks x86_64 architecture and Docker, and needs external network access.

Current ABLENET templatesUbuntu Server 22.04, 24.04 and 26.04 among others; memory requirements vary by OS.
Installation from mediaSeveral operating systems are available, including Ubuntu 20.04 and Debian 10. Availability does not guarantee compatibility.
Outline's documented prerequisitesUbuntu 20.04 LTS or Debian 10, with root or sudo access.
Installer behaviorChecks x86_64 and Docker, and by default creates persistent state in /opt/outline.
The provider's templates and Outline documentation can be updated at different times. Do not assume a newer OS works in every configuration or use an old OS in production without checking its security support. Test on an empty VPS, consult current Outline documentation and the installer, and be prepared to rebuild.

Check before choosing

  • x86_64 CPU architecture
  • The OS still receives security updates
  • Docker can be installed and maintained
  • SSH access works after reboot

Avoid these assumptions

  • Sharing an existing business server
  • Pinning an OS based only on an old article
  • Forcing a current OS onto L0
  • Distributing keys before testing
Preflight

Six prerequisites before installation

1

An empty VPS dedicated to Outline

Use an environment without existing websites, email or databases so it can be reset if compromised or its configuration is unclear.

2

SSH key and sudo user

Use public-key authentication and grant the working user required sudo privileges. Before disabling root or password login, verify key-based access in a separate session.

3

ABLE panel VNC console

This provides another access path if SSH or firewall settings are wrong. Before starting, verify access and confirm the VPS and IP address match.

4

Backups and a rebuild record

Record the OS, IP address, SSH public key, downloaded script, generated ports, setup date and owner. Arrange your own backups for user data.

5

User, device and expiration inventory

Record who receives each key and when it should be removed. A shared key cannot be revoked for only one person.

6

Stop conditions

Stop if you have lost both SSH and VNC, cannot verify the official download source, need to expose unnecessary ports, or cannot store secrets safely.

Screen from June 2025
Before changing SSH, confirm you can open the VNC console in the ABLE panel.

Initial inspection commands

These examples check the target, architecture, free memory, disk and IP. Record the results and stop if they differ from your plan.

hostnamectl
uname -m
free -h
df -h
ip -br address

Example update commands for Ubuntu or Debian

sudo apt update
sudo apt full-upgrade -y
sudo reboot
After reboot, verify that you can reconnect with the same public key. When changing SSH settings, keep the current session open until a second session succeeds.
Installation

Seven steps to install Outline Server on ABLENET VPS

Screens, supported operating systems and scripts change. Immediately before execution, consult Outline's official getting-started and installation documentation and verify the official repository.

Order an empty Linux VPS and record the target

Use an empty test VPS, with L1 or higher as a starting point. Record its ID, region, public IPv4 address, plan and contract conditions. For a trial, check its end date and conversion terms.

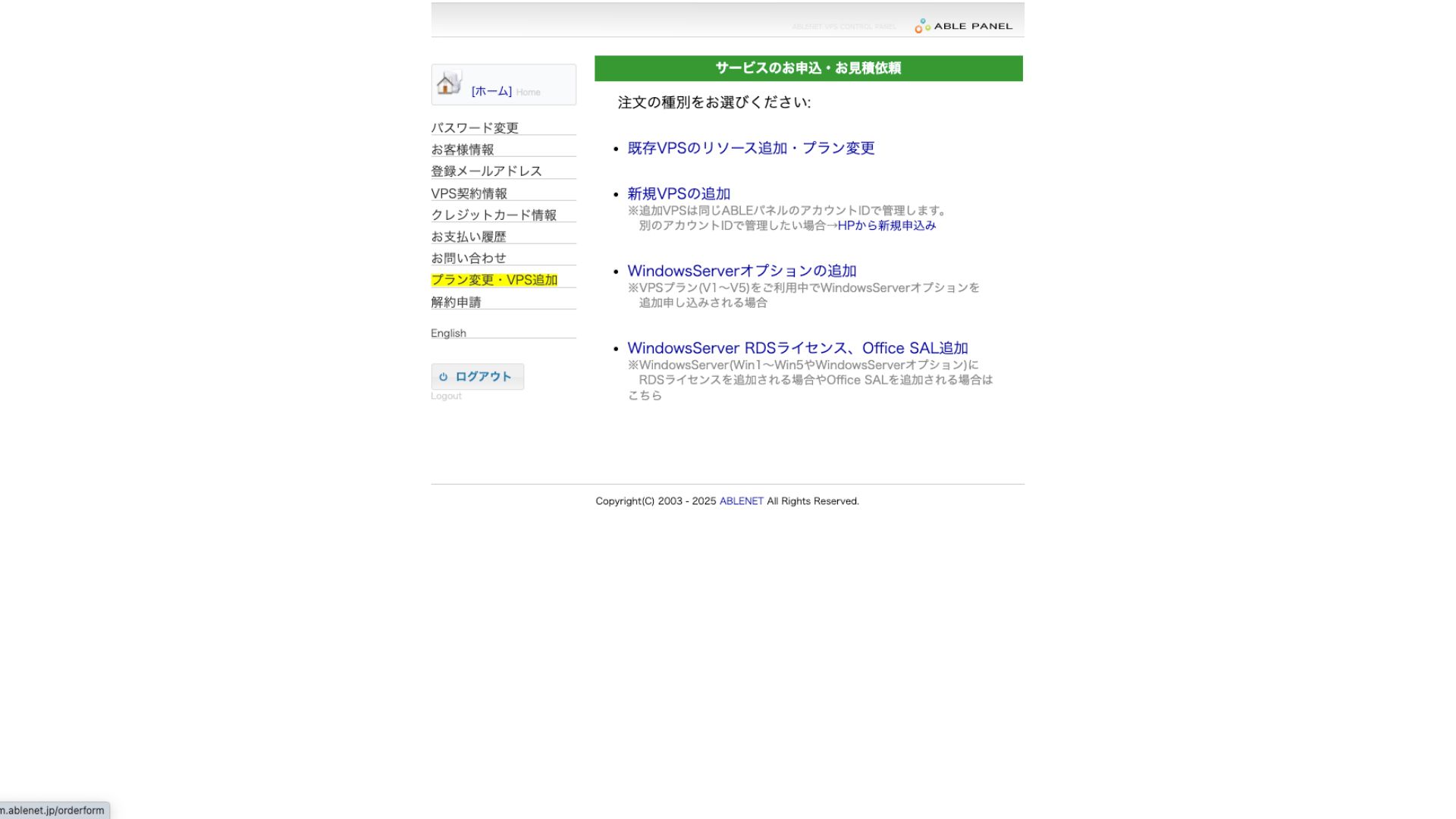

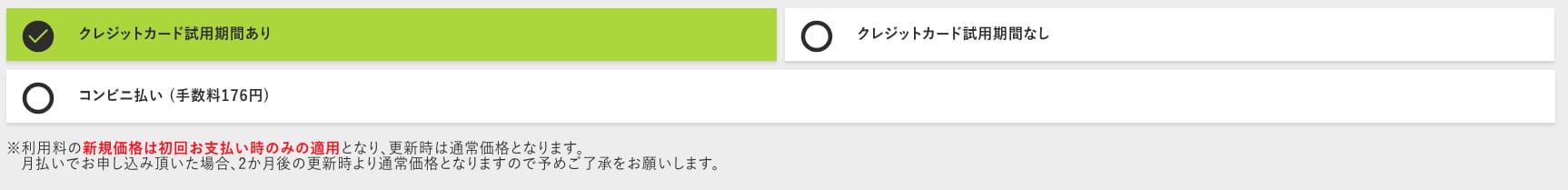

Historical screen from 2025
Trial terms can change. The current provider page advertises up to 10 days.

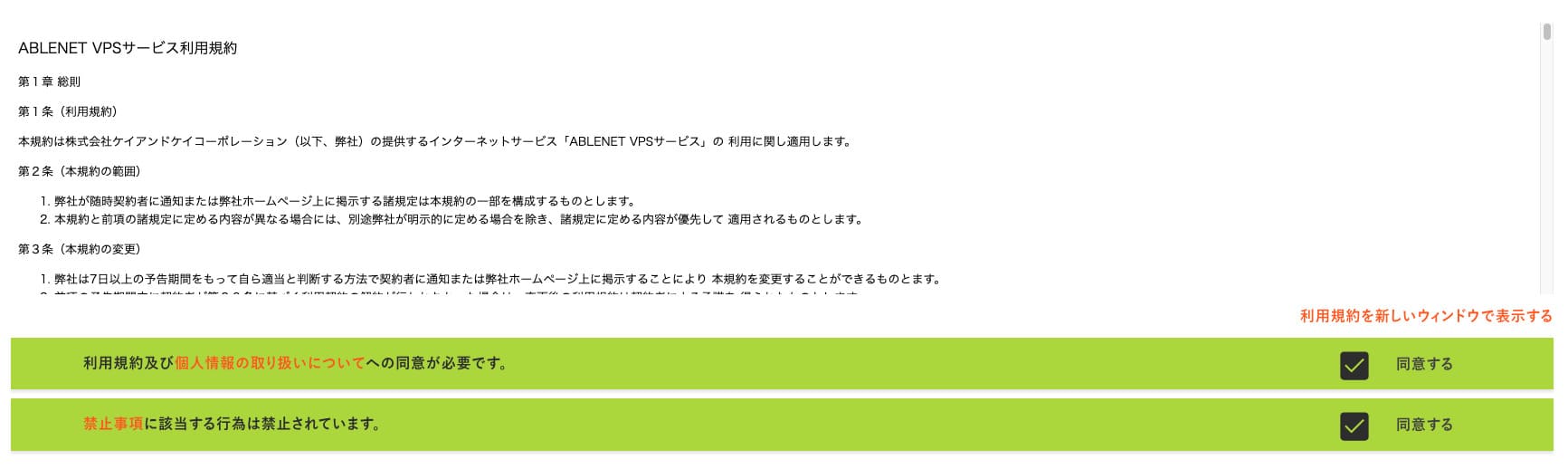

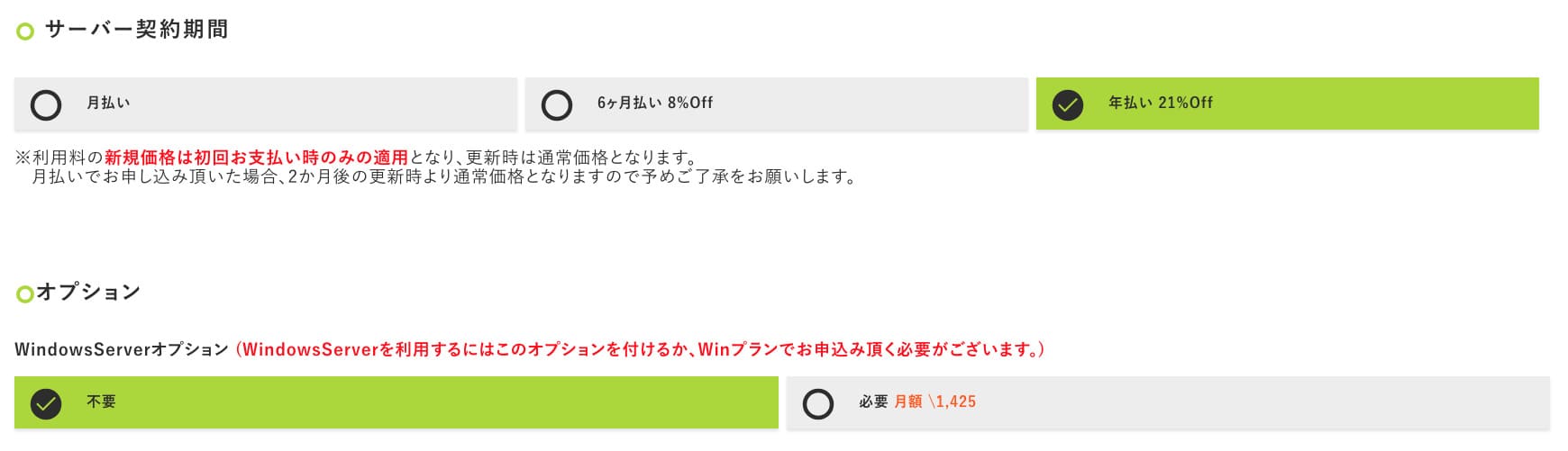

Historical screen from 2025
An example of where contract term and initial payment information appeared.
Historical screen from 2025
Do not share or publish screens containing payment information.

Initialize the OS and confirm both SSH and VNC access

Double-check the target before initializing the OS: initialization erases the disk. Reconnect as your sudo user with a public key and verify the ABLE panel VNC console.

Allow the current SSH port before enabling UFW or another firewall. Test a separate SSH session and keep the original open until the test succeeds.

Install Outline Manager from its official distributor

Install Outline Manager on an encrypted, updated and screen-locked administrative device. It registers the server and creates or deletes access keys; do not use a shared PC.

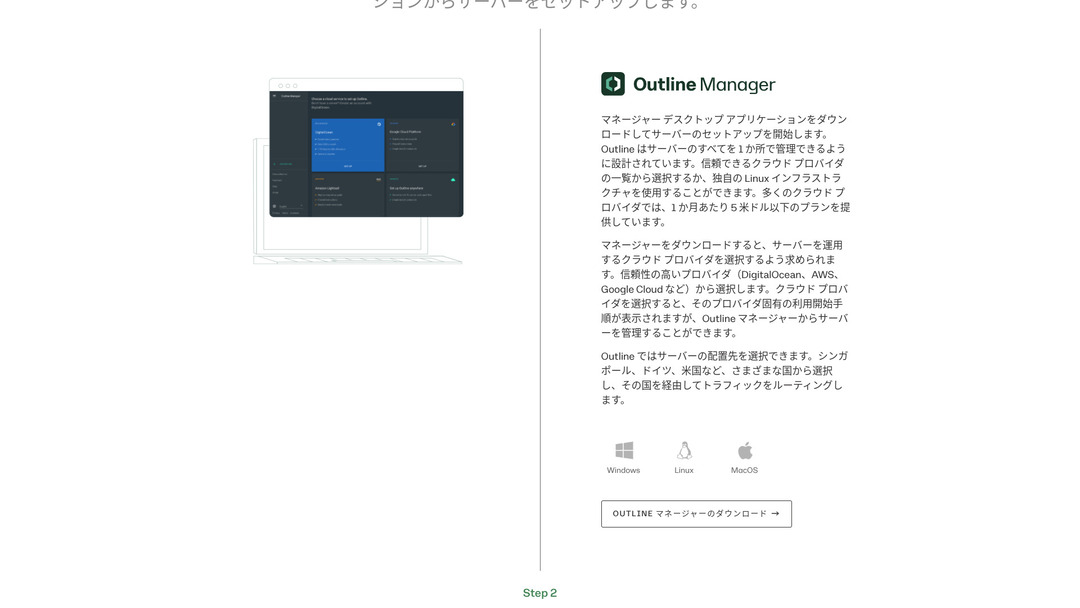

Historical screen from 2025
Obtain Manager and Client from Outline's official distribution channels, not unofficial mirrors.
Historical screen from 2025
Recheck supported operating systems and distributions on the official page when installing.

Save and inspect the official installation script

The official instructions provide a one-liner. This guide saves the file first so you can review its source and contents before execution.

curl -fsSLo /tmp/outline-install.sh \
  https://raw.githubusercontent.com/OutlineFoundation/outline-apps/master/server_manager/install_scripts/install_server.sh

less /tmp/outline-install.sh

Verify that the URL host is raw.githubusercontent.com, the owner is OutlineFoundation, and the repository is outline-apps. Record the retrieval date and a hash for operational traceability.

Run the same file you inspected with sudo

sudo bash /tmp/outline-install.sh

The installer checks x86_64 and Docker. If Docker is absent, it can request permission to run a separate Docker installation script: review that source as well or install Docker beforehand using its official instructions. It then configures the Outline shadowbox container, an update container and persistent state. If installation fails, do not repeatedly rerun the command: inspect the error, Docker, disk space and DNS first.

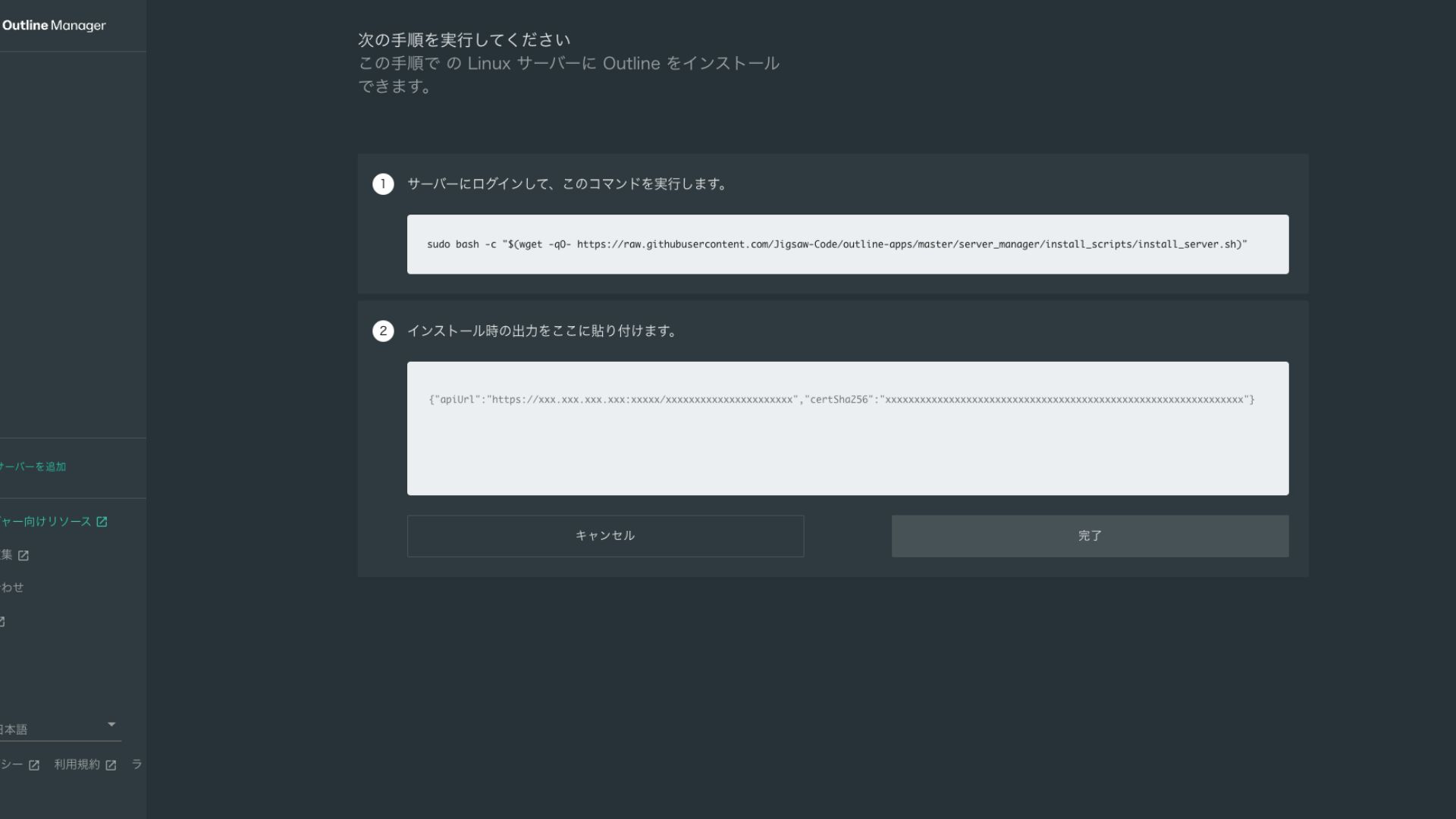

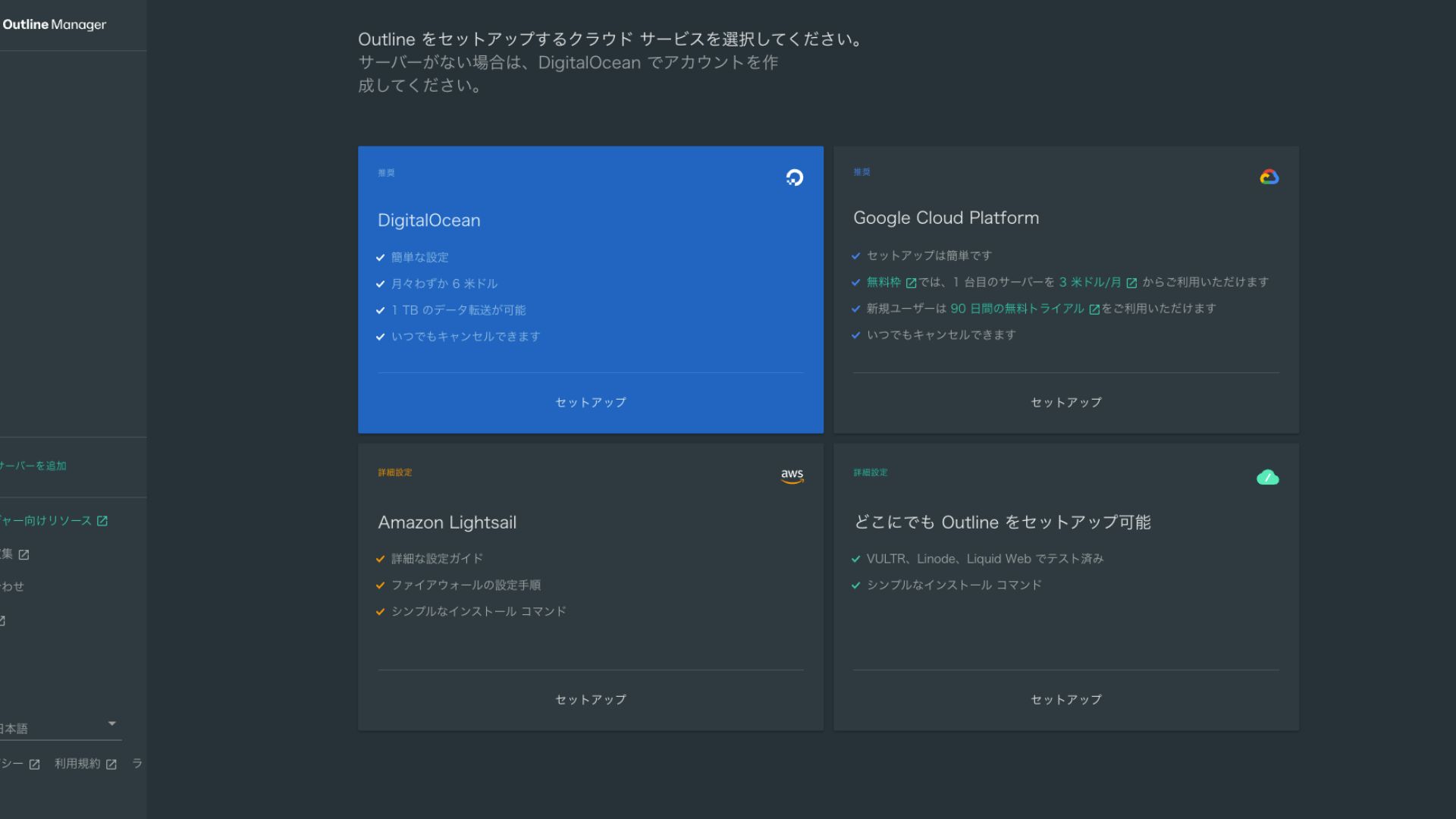

For an independently managed Linux VPS such as ABLENET, select the option equivalent to setting up Outline anywhere.
Check the source of the command shown. Here we save and read the script before running it.

Allow only the two generated port types

Allow the management API TCP port and access-key TCP and UDP port shown by the installer. Port numbers differ by installation; replace the placeholders below with your own values.

sudo ufw allow <SSH_PORT>/tcp
sudo ufw allow <MANAGEMENT_API_PORT>/tcp
sudo ufw allow <ACCESS_KEY_PORT>/tcp
sudo ufw allow <ACCESS_KEY_PORT>/udp
sudo ufw enable
sudo ufw status numbered
Do not open every port. Where possible, restrict SSH and management API sources according to your operational needs. Do not post port numbers or management credentials in articles, tickets or screen shares.

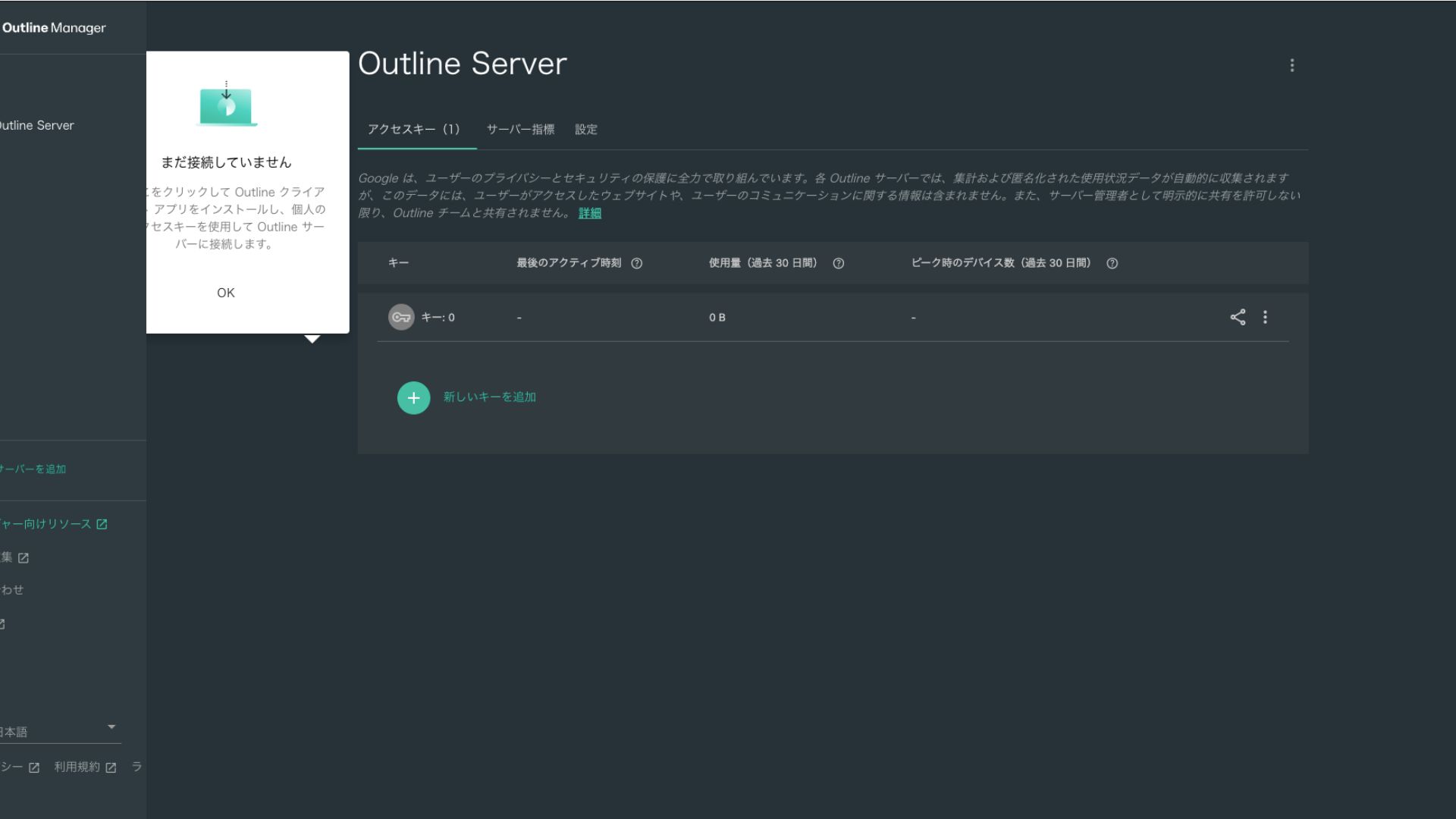

Register the management JSON with Outline Manager

Add the JSON containing apiUrl and certSha256 from the installer to the appropriate setup option in Manager. This JSON is a secret equivalent to server administration access.

By default, the installer saves management information in /opt/outline/access.txt. The path can be configured. Restrict access and never copy it to chat, Git, monitoring logs or screenshots.

Access keys

Issue a separate access key for each user or device

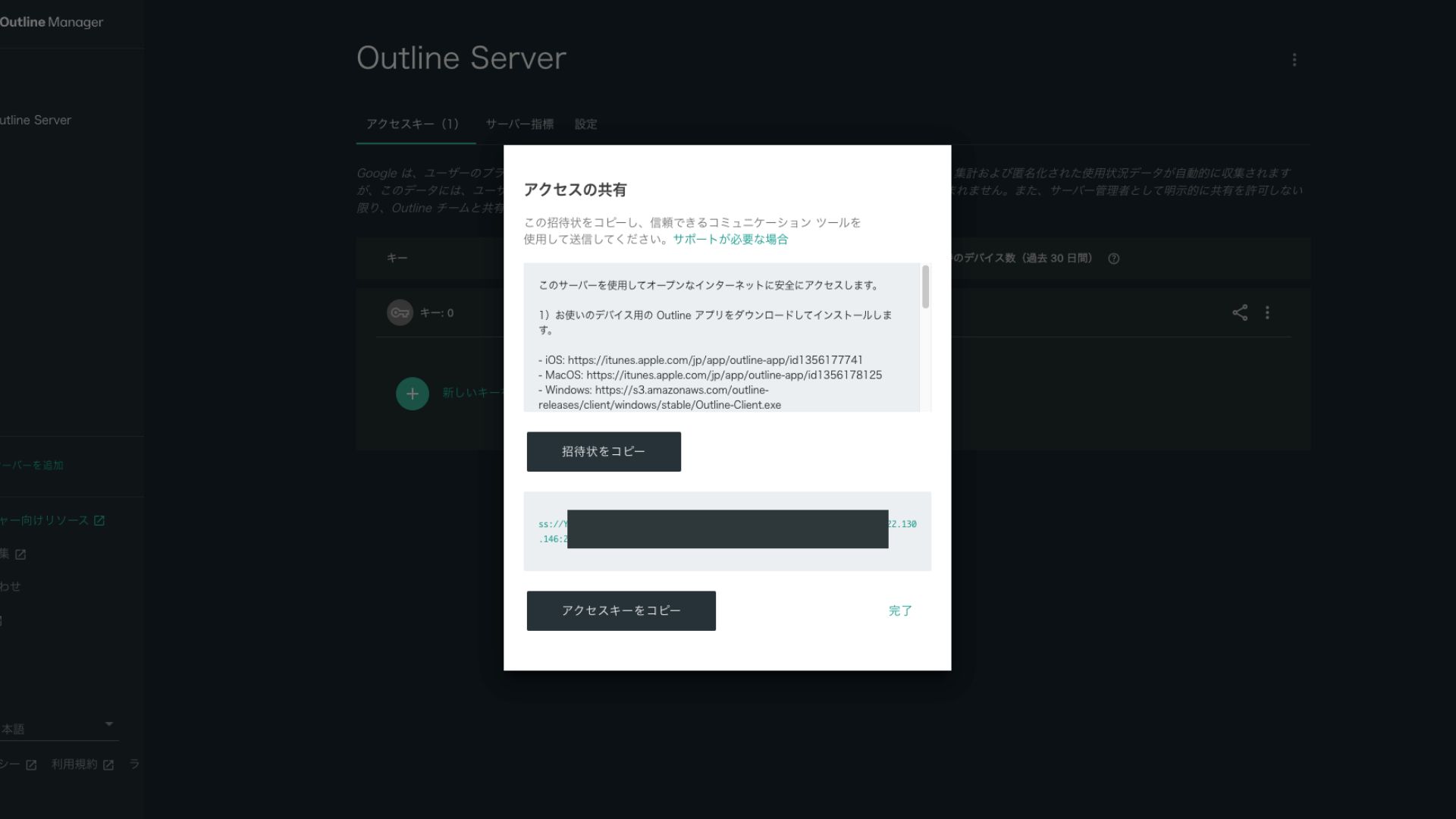

After registering the server in Outline Manager, create a unique key for each user or device instead of sharing the initial key. Record an identifier, issue date, owner and planned removal date.

Separate keys let you revoke only the compromised key.
Invitation URLs contain connection credentials. Do not post them in public chat, Git, tickets or screen shares.

Create a key with an identifier that avoids unnecessary personal data

Choose a manageable name such as 'Sales Android 2026-07' so the right key can be removed when someone leaves, changes devices or no longer needs access.

Share through an individual channel where the recipient can be verified

An invitation URL is a credential. Avoid public channels, broadly shared documents, GitHub issues and recorded screen shares; remove unneeded copies after receipt.

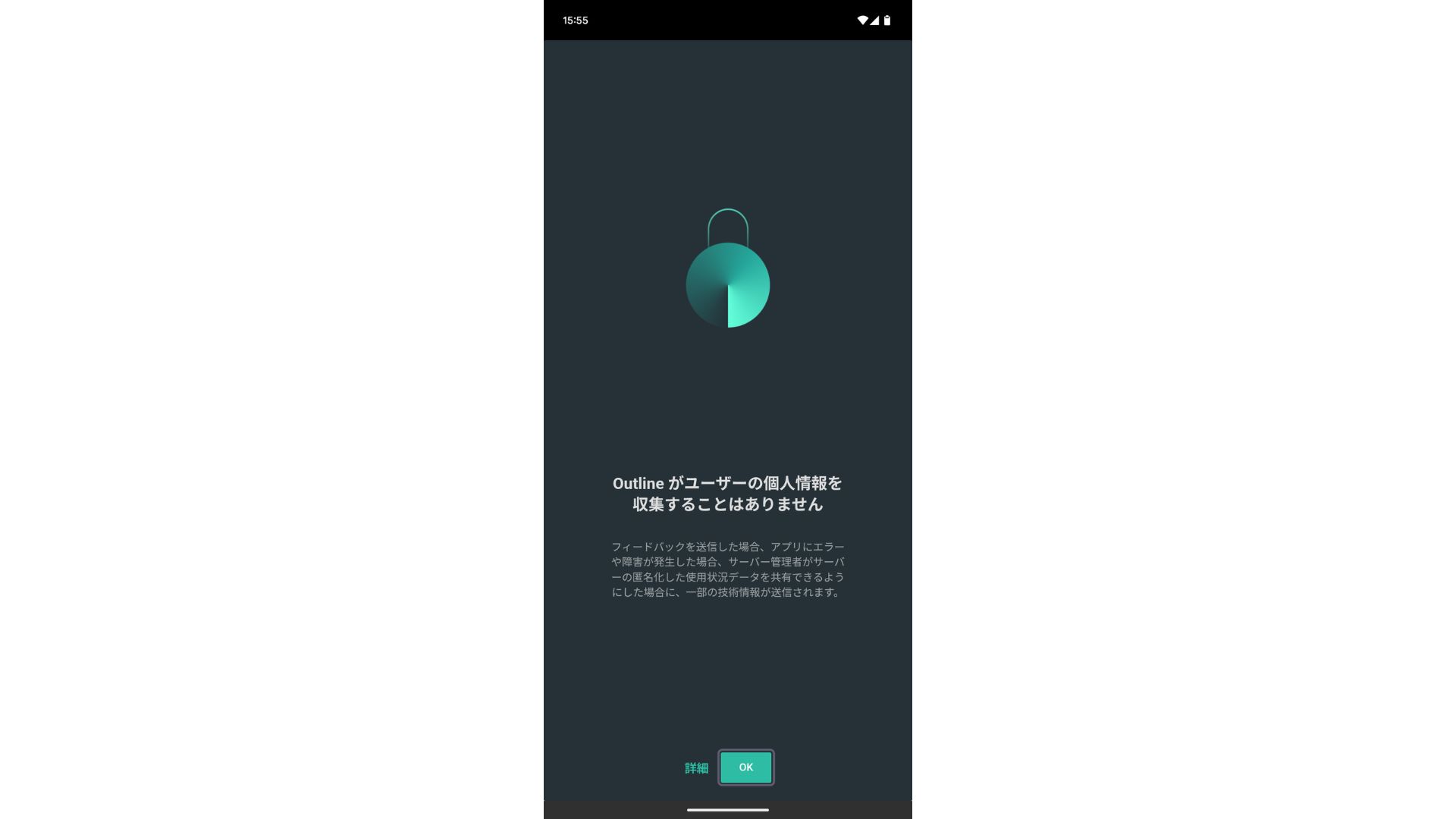

Add the key to the official Outline Client and connect

Install the client from an official source and add the dedicated key. If the OS asks to approve a VPN connection, verify that the requesting app is Outline before accepting.

Revoke immediately after loss, misdelivery or departure

Delete the affected key in Manager and issue a different key if needed. If management JSON is exposed, key deletion alone is insufficient: plan a rebuild.

Verify the official app name and distributor.

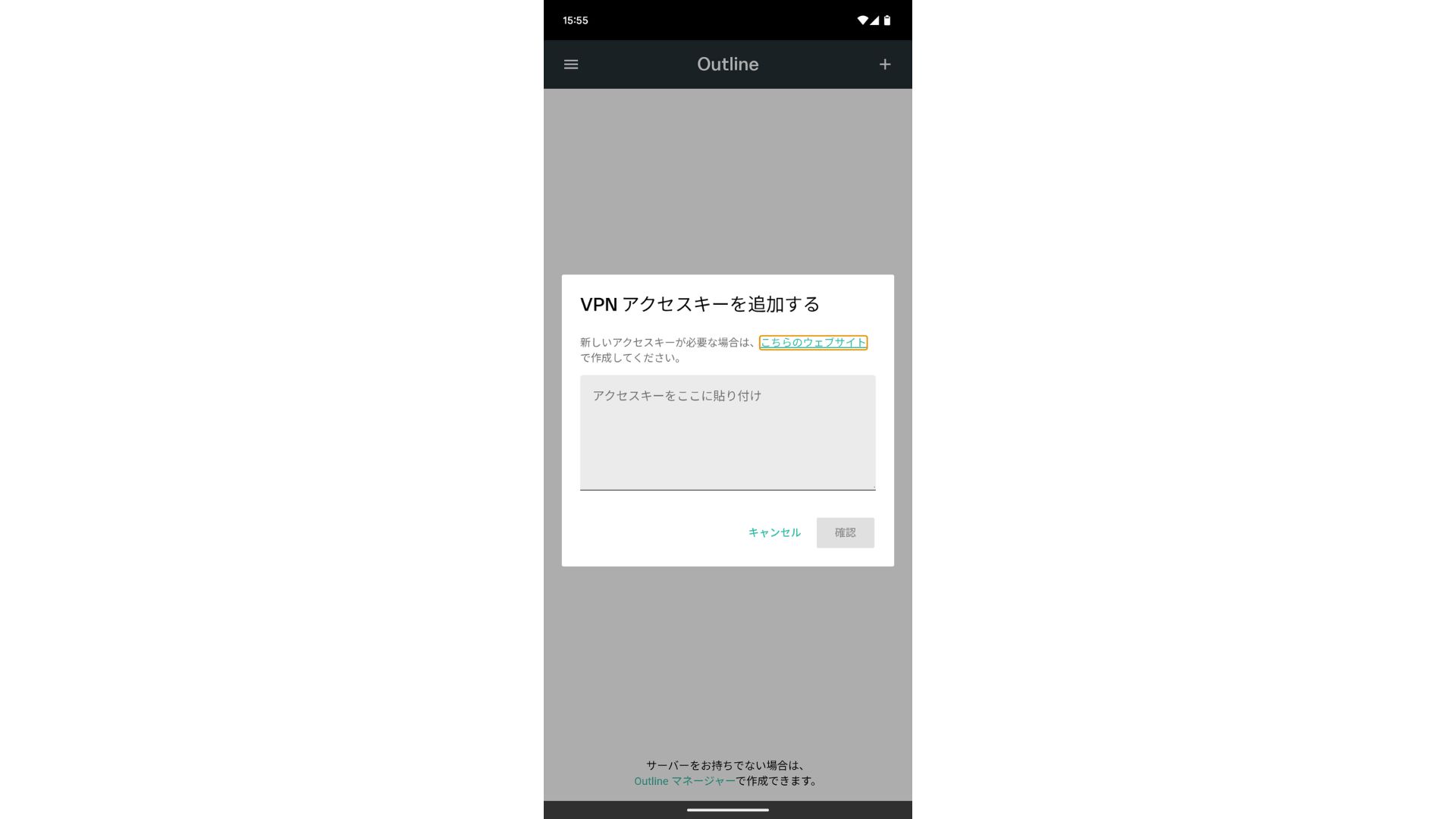

Add a key dedicated to this device.

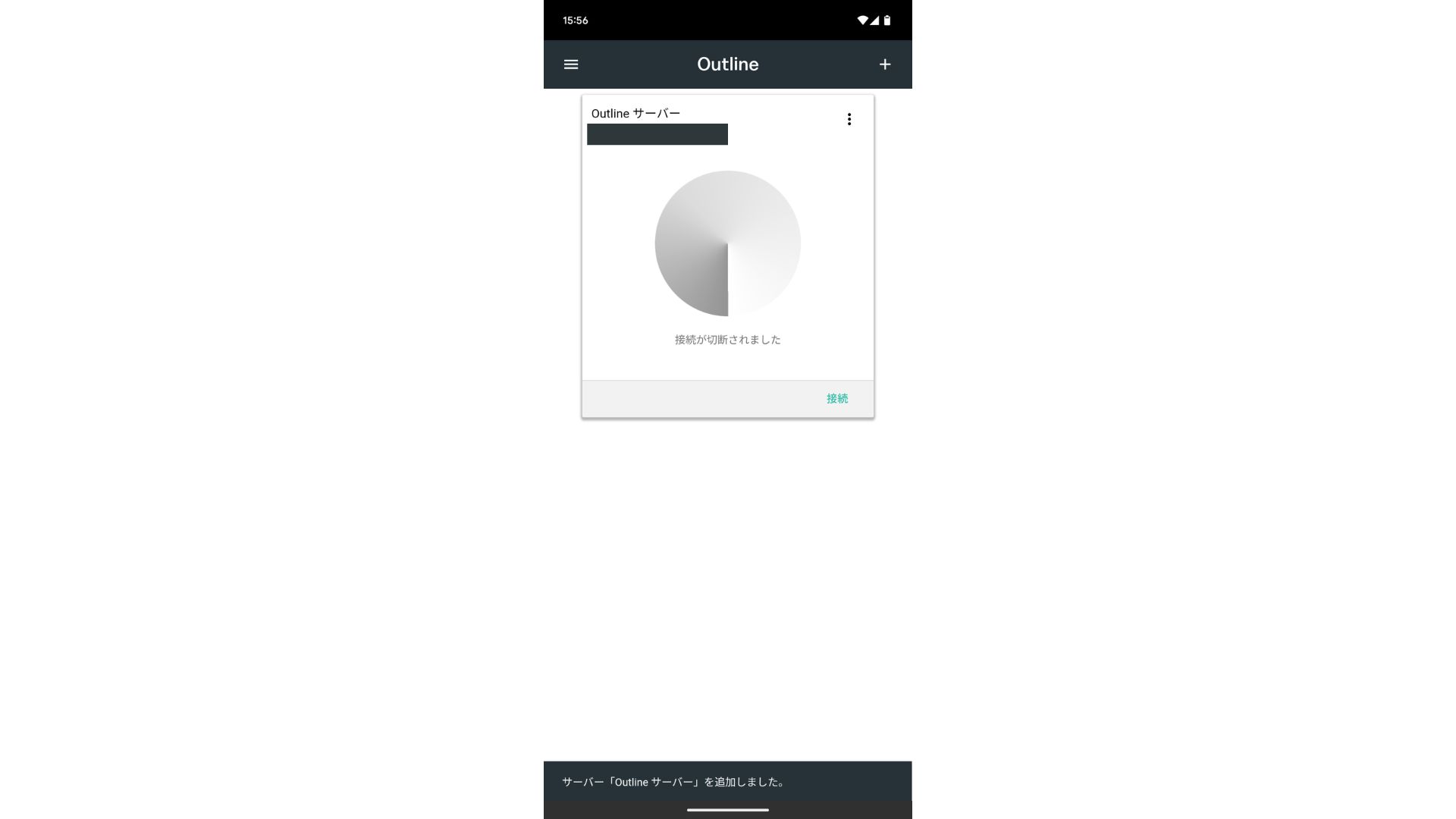

Adding a key does not establish a connection; explicitly check the connection state.

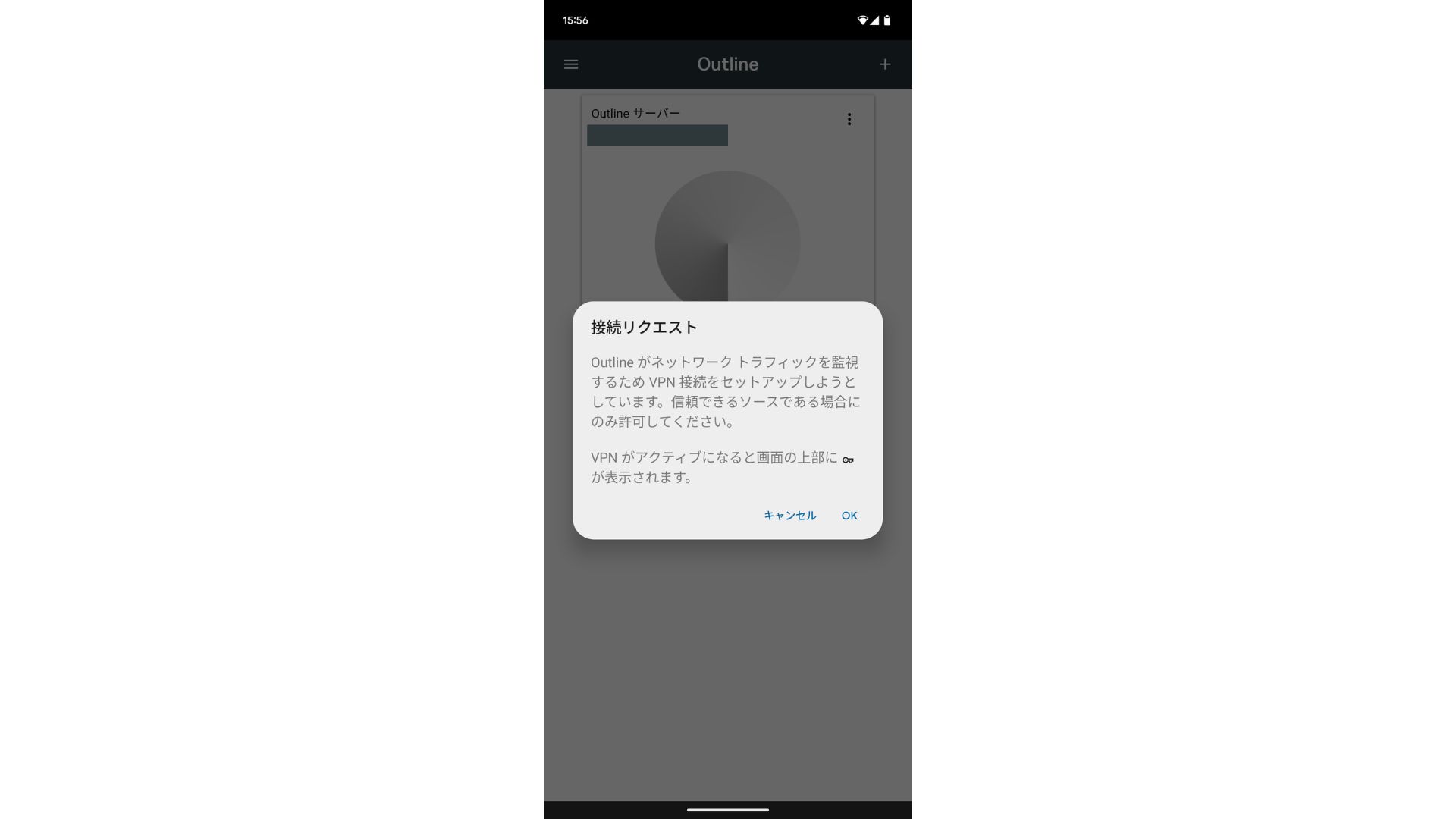

Verify that Outline is the requesting app before approving.

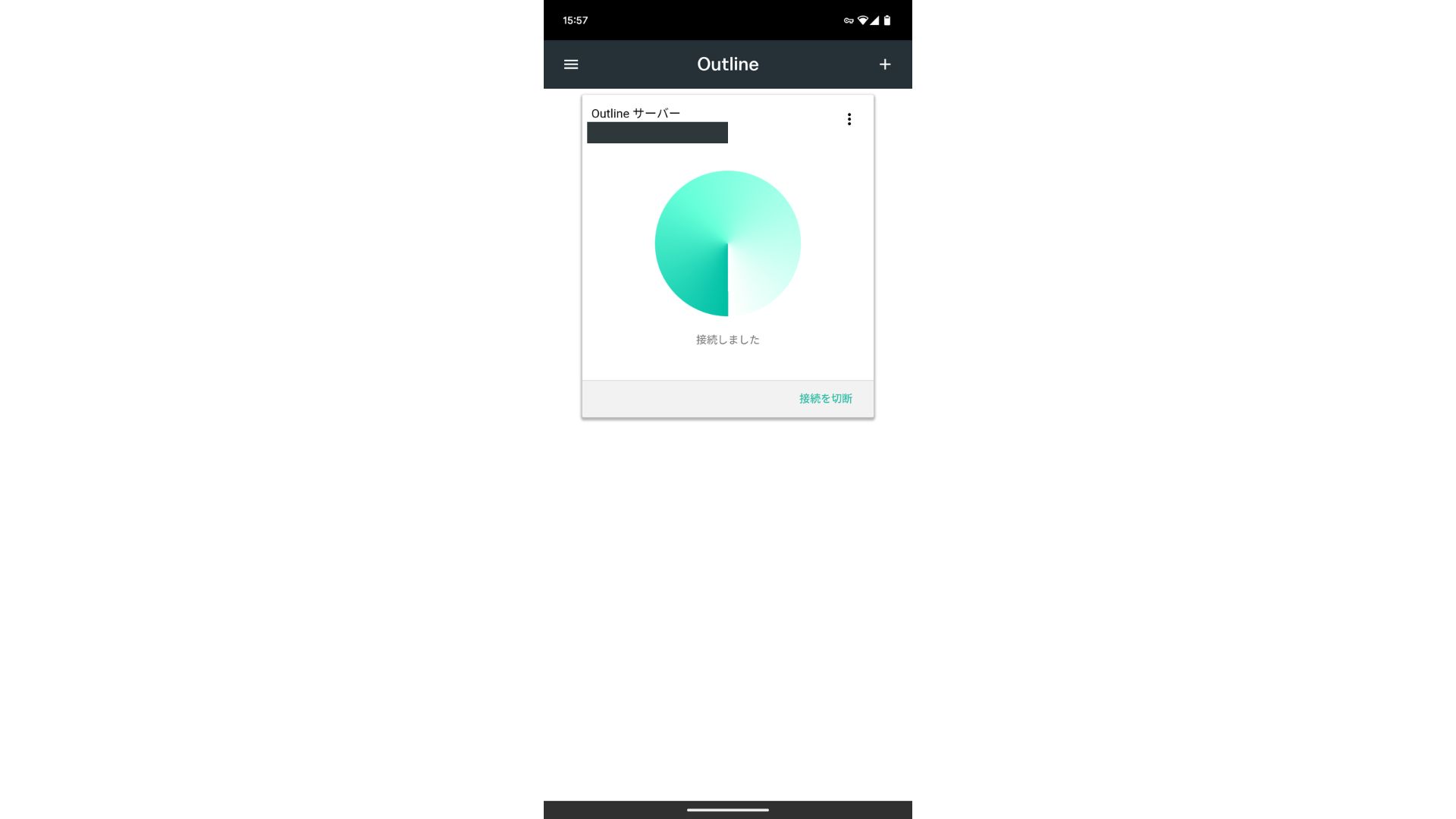

Check the source IP, disconnection behavior, DNS and IPv6 rather than relying only on the connected indicator.
Verification

Check more than an IP address change

A green connection button or a successful speed test alone is not completion. Test routing, disconnection, DNS and IPv6, reboot and key revocation separately.

CheckMethodExpected result
Source IPCompare before and after using the same check serviceVPS IP while connected; original network after disconnection
DNS and IPv6Test actual devices, browsers and appsExplain any unexpected routes or leaks against your requirements
Required servicesExercise email, internal tools, websites and appsRequired work succeeds while connected and disconnected
RebootSchedule a VPS reboot and check Docker and connectivityManager and Client reconnect afterward
RevocationDelete a test key and try reconnectingThe deleted key no longer connects

ABLENET's network figure is not a guaranteed speed

The provider describes a shared 200 Mbps connection, one IPv4 address and unmetered transfer. Actual throughput varies with time, client, route, VPS load, encryption and measurement destination.

Saved image from 2025
A shared, best-effort 200 Mbps line is not a guarantee of actual throughput.

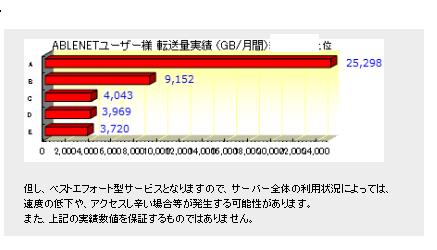

Historical image
The provider describes unmetered transfer; check prohibited use, fair-use and operating rules before contracting.

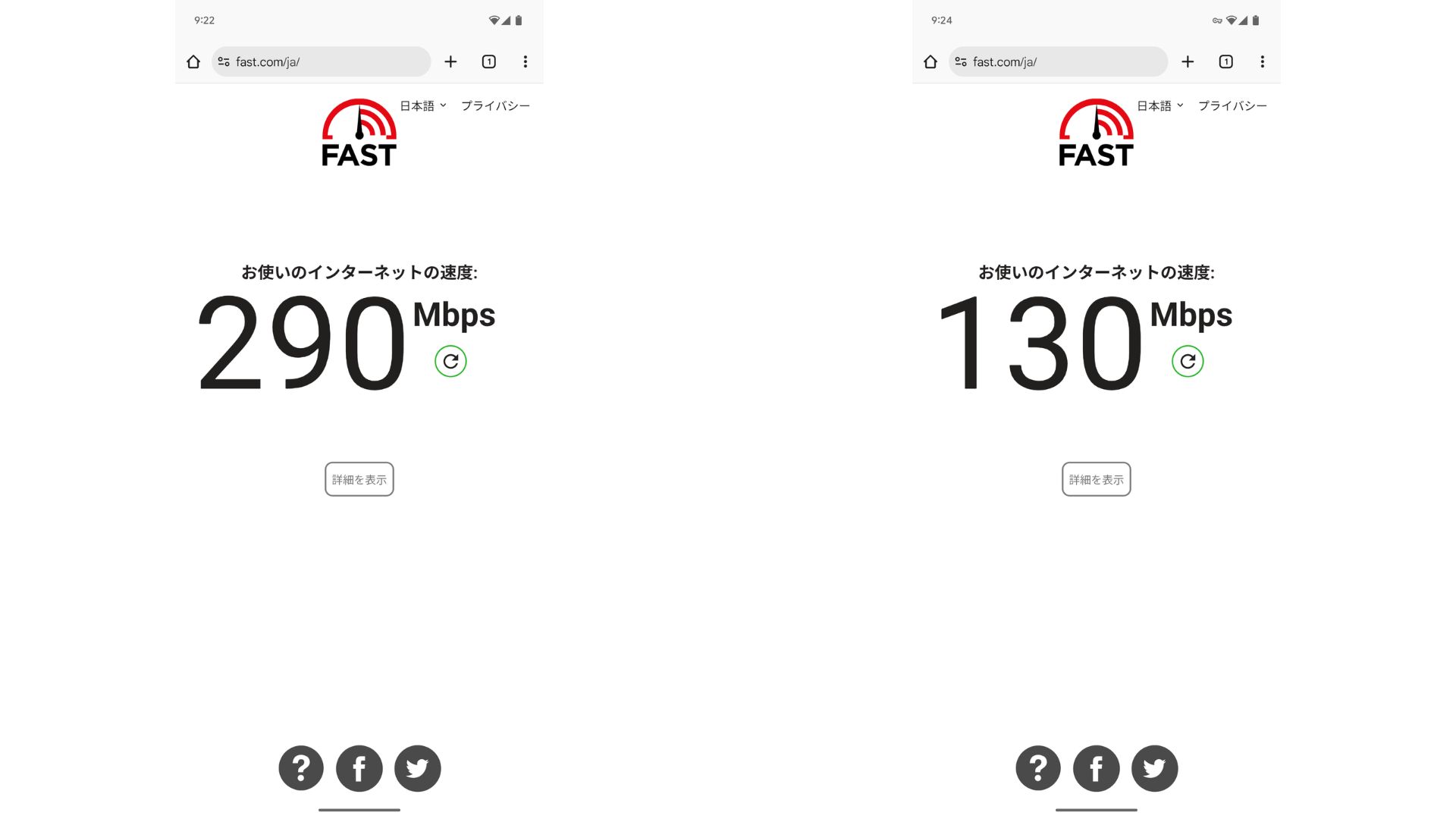

A single measurement from June 2025
An old measurement on one device, network and time period; it does not guarantee current plan performance, other users' results or future speeds.

Measure speed repeatedly under comparable conditions. Keep device, network, test destination and time comparable before and after connecting, and examine the median and variation. Do not rank services based on one fastest result.

Security operations

Six rules for safer Outline operation

01

Do not share keys

Separate them by user or device and remove keys when no longer needed. Shared keys make responsibility and leak tracing harder.

02

Treat management JSON as a critical secret

apiUrl and certSha256 are used to register Manager. Treat exposure as an administrative compromise and rebuild.

03

Protect /opt/outline

It holds persistent state and management information by default. Restrict access and encrypt and protect any backups.

04

Do not rely on automatic updates alone

The installer configures a server-container updater, but you remain responsible for the OS, Docker, SSH and firewall.

05

Do not assume anonymity

Destinations see the VPS IP. Cookies, logins, device identifiers, DNS and IPv6 can reveal other information or use other paths.

06

Check terms and law

Review local laws, destination-service terms, organizational policy, log retention and user notification.

ABLENET support scope: The customer is responsible for maintaining and troubleshooting software installed on the VPS. Disaster-recovery backups do not necessarily provide an individual user restoration service. Keep your own rebuild record.
Recovery

Troubleshoot by symptom

Avoid changing multiple settings at once. Record the last successful point, the preceding change and the current error; do not publish logs or screenshots containing secrets.

SymptomCheck firstRecovery action
Cannot access SSHABLE panel VNC, SSH service, UFW, public key and diskCorrect the configuration through VNC; if recovery fails, check backups before initializing the OS
Cannot register ManagerManagement TCP port, IP, clock, Docker and management JSON/opt/outline/access.txt can be checked privately from the management device. Do not publish the JSON.
Client cannot connectKey validity, access port TCP and UDP, device clock and another networkDistinguish management and access ports and retry with a test key
Installation stallsx86_64, Docker, DNS, free disk space and existing containersResolve one cause at a time and recheck the script before running it again
Service does not start after rebootDocker service, container state, ports and OS update historyCheck startup and logs; rebuild on an empty VPS if the configuration is unclear
Credentials are exposedIdentify whether the access key or management JSON was exposedRevoke and reissue an access key; rebuild the server if management JSON was exposed

Example status commands

sudo systemctl status docker --no-pager
sudo docker ps -a
sudo ss -lntup
sudo ufw status numbered
sudo journalctl -u docker --since "30 min ago" --no-pager
Stop immediately if: both SSH and VNC access are lost, management JSON or access keys are exposed, existing services are affected, or you cannot identify the source of the script you ran.

For final recovery, rebuild from an empty VPS

  1. Stop issuing new keys and record the impact
  2. Preserve necessary evidence without exposing secrets
  3. Stop the affected VPS and prepare another empty VPS or initialized OS
  4. Rebuild using current official documentation and scripts
  5. Replace management credentials and all access keys
  6. Tell users that old keys are disabled and distribute new keys

Rebuilding from an empty OS makes the trusted configuration easier to explain than extending a compromised or unknown state. Initialization erases data, so have two people verify the target VPS and backups before proceeding.

Maintenance

Post-installation maintenance checklist

Monthly

  • OS security updates
  • Docker and container status
  • Disk, memory and traffic
  • ABLENET billing and renewal prices

Quarterly

  • Inventory active keys
  • Remove unneeded keys
  • Test revocation of a test key
  • Verify connectivity after reboot

When changes occur

  • Check for Outline documentation updates
  • Record the state before OS or Docker changes
  • Test connectivity after port changes
  • Notify affected users

Departure, device loss or exposure

  • Immediately revoke the affected key
  • Review logs and impact
  • Reissue all keys if necessary
  • Rebuild if management JSON was exposed
Server inventoryVPS ID, plan, OS, IP, setup date, owner and last update review
Port inventorySSH, management API TCP and access-key TCP/UDP; do not publish
Key inventoryIdentifier, owner, device, issue date, expiration and deletion date
Recovery recordOrder of initialization, official installation, Manager registration, reissue and user notification
FAQ

ABLENET VPS and Outline FAQs

Does this URL explain how to set up OpenVPN?

No. The URL contains 'openvpn', but this article sets up Outline Server. OpenVPN configuration files, certificates and OpenVPN Access Server require a different procedure.

Will Outline work on ABLENET L0?

A plan name does not guarantee compatibility. L0 has 0.5 GB; current ABLENET Ubuntu templates need at least 1 GB, and Ubuntu 26.04 needs 1.5 GB. We use L1 as a test starting point to leave room for the OS, Docker and updates.

Which OS should I choose on ABLENET?

Outline's documentation names Ubuntu 20.04 LTS or Debian 10, while ABLENET's standard templates emphasize newer systems. Do not assume all newer systems work or that an old OS is safe in production: check current documentation and security support, and test on an empty VPS.

Which ports does Outline need?

There are no fixed port numbers. Allow the installer-generated management API TCP port, access-key TCP and UDP port, and the SSH port required for administration. Do not reuse port numbers from another person's article.

What if an access key leaks?

Revoke the affected key in Outline Manager and issue a unique replacement. If management JSON containing apiUrl and certSha256 is exposed, treat it as an administrative compromise and rebuild on an empty VPS with new keys.

Does connecting to Outline make me anonymous?

Anonymity is not guaranteed. Destinations see the VPS IP, while logins, cookies, browser identifiers, DNS, IPv6 and apps may expose other information or use other routes. Outline provides a connection path, not complete anonymity.

Can I use it as a business VPN to reach an internal LAN?

For internal LAN access, site-to-site links, device certificates, identity integration or detailed audit, design against your requirements and compare organizational VPN and zero-trust options rather than deciding on Outline alone.

Primary sources

Official sources used for this guide

Selected plan, operating-system and installer information was checked on November 11, 2026. Prices, scripts and interfaces change, so reopen the official sources before carrying out the work.

Final checklist

Finish with revocation and recovery, not merely a connection

A successful installer or connected indicator is not the end. Record SSH and VNC access, generated ports, per-device keys, connection checks, OS and Docker maintenance, revocation and rebuilding from an empty VPS. Stop before distributing keys if management information cannot be protected.

SSH recovery checkedOnly required portsPer-device keysRevocation testedManagement credentials private
Website Production

Work with Finite Field on your website

We can help with server selection, WordPress production, redesign, performance, site structure and custom web systems for your work.

Free consultation From requirements onward WordPress and Go
  • From defining requirements and design to development and post-launch improvements
  • Websites, landing pages and business systems tailored to your work
  • Consultation also covers mathematical optimization and operational improvement
Contact

Tell us about your current challenges

You are welcome to contact us even if you know what you want to build but are unsure how to proceed.

We can help define your current challenges. Please get in touch.
